Oracle Simphony POS Integration

This integration between Oracle Simphony and Bluedot will enable your brand to understand the estimated time of arrival (ETA) and real-time Arrival of your mobile customers. Store Associates can use these insights, for efficient order preparation and a seamless, contactless, curbside pick-up experience.

The real-time updates for your customer’s ETA and actual Arrival can be viewed:

  • In your POS (using our webhook service),
  • Through an existing integration partner, or
  • On Hello screens


  • Before starting your Bluedot Oracle Simphony implementation, a few important notes:
  • You need to have an Order management system (OMS) implemented which creates orders in the Simphony POS
  • Your brand app must pass the OrderID from the OMS to the Bluedot SDK
  • The OMS should add the OrderId to PCheckInfoLines of the Simphony POS check.
  • Implement Tempo for ETA & Arrival notifications
  • You’ll continue to use your POS to view the actual order details and make adjustments (additional items, cancellations, refunds etc.)

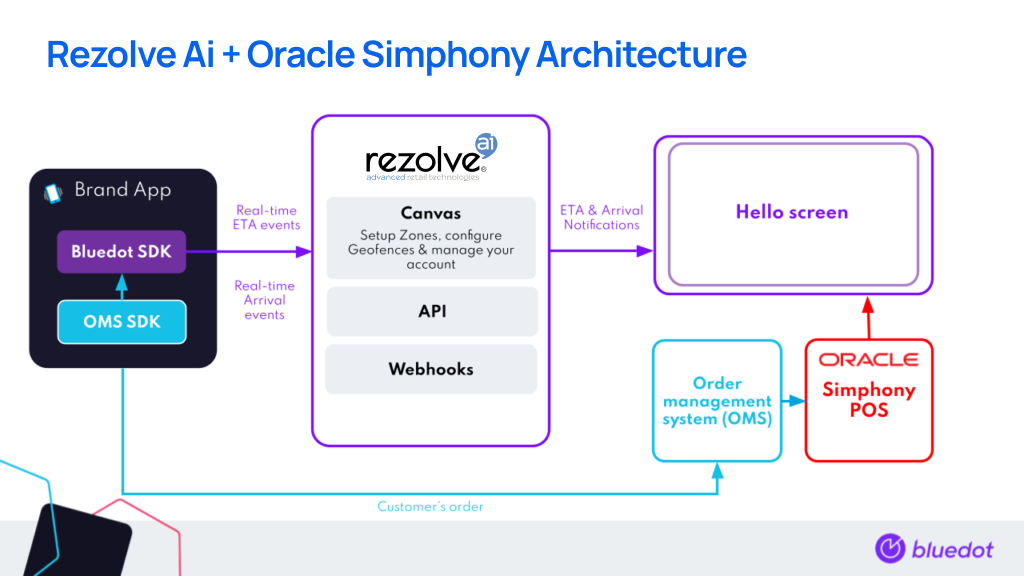

Integration Architecture

Integration Steps

1. Integrate the Bluedot SDK within your mobile app:

a. iOS integration guide

b. Android integration guide

2. For every order, the app will have to define the following fields in the custom event metadata.


  • OrderId (this should be the OrderID generated using the OMS)
  • CustomerName

Optional You can attach any of the following customer information to each ETA and Arrival Event to help your in-store team understand the customer and power a seamless curbside experience.

The type of information you may want to attach includes Customer MobileNumber, VehicleModel, VehicleColor, VehicleRegistration._

Android example

class TestApplication extends Application
public void onCreate() {
Map<String, String> metaData = new HashMap<>();
metaData.put("hs_OrderId", <OMS OrderID>);
metaData.put("hs_CustomerName", <Customer Name>);
metaData.put("hs_MobileNumber", <Mobile Number>);
metaData.put("hs_VehicleModel", <Vehicle Model>);
metaData.put("hs_VehicelColor", <Vehicle Color>);
metaData.put("hs_VehicelPlate", <Vehicle Plate>);
// Setting metaData object in setCustomEventMetaData with BlueDotPointService.
// Authenticate.
getServiceManager().sendAuthenticationRequest(projectId, listener, restartMode)

iOS example

func application(\_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Boo {
// Setting meta data in setCustomEventMetaData.
"hs_OrderId" : "The Olo order id",
"hs_CustomerName": "The user's name",
"hs_MobileNumber": "The user's mobile number",
"hs_VehicleModel": "The user's vehicle model",
"hs_VehicleColor": "The user's vehicle color",
"hs_VehiclePlate": "The user's vehicle plate" ])

// Authenticate
BDLocationManager.instance()?.authenticate(withApiKey: projectId, requestAuthorization: BDAuthorizationLevel.authorizedAlways)
return true

3. When an order is placed, the app will start Tempo on the Bluedot SDK.

4. The order for the particular OrderID and its ETA will update in real-time on your Hello screen.

If you have any questions about this guide or implementing Bluedot & Oracle Simphony together, reach out to our Engineering Support Team
